| Brand Name: | ZDPACK,neutral,OEM |
| Model Number: | KZ-32/19 |
| MOQ: | 8 pieces |
| Price: | $660.00/pieces 8-319 pieces |
| Payment Terms: | T/T, Western Union, MoneyGram |

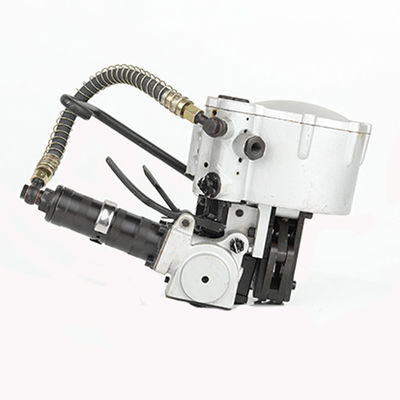

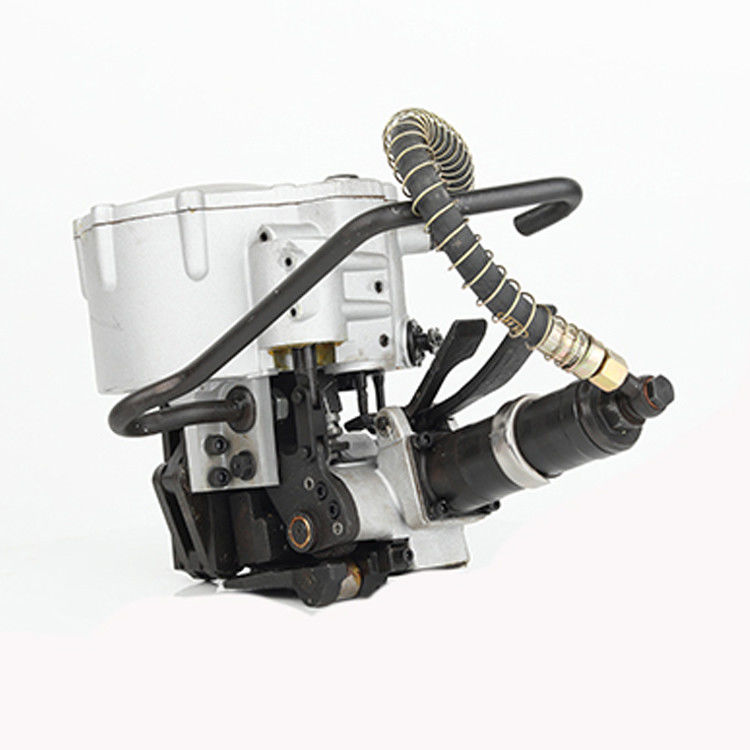

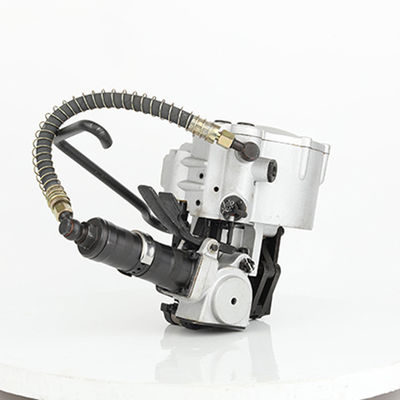

Pneumatic Steel Strapping Machine For 32mm Steel Band
Specifications:
|
Model NO. |
KZ-32/19 |
|
Steel strip specification: |
(19-32)×(0.8-1.2)mm |
|
Air pressure: |
0.4-0.6MPa |
|
Speed of steel strip feeding: |
5.3m/min |
|
Tension force: |
≥9.8KN/0.6MPa |
|
Tension under clip mouth: |
16.85Kg |
|
The whole gas consumption: |
1CM3 |
|
Weight: |
15.5Kg |
| The tension strength of the lock section: | 16850-20000N |
| Lock type: | Buttoned/double-tooth |
More images to disply
1.How many buttons does the machine have?
There are two buttons which controls tension and seal separately.
2.What is the function does the machine have?
Strap tenion,strap seal.
3.Other accessories require in the operation?
Yes, correct size buckle required for the whole packing.
4. The machine is heavy,how do operate?
A spring balancer is also required to packing properly.
Video
Video
Video
Video
|
